Made Easy 5 Minutes - ECG Interpretation

Electrocardiography (ECG or EKG) is a transthoracic interpretation of the electrical activity of the heart over time captured and externally recorded by skin electrodes. It is a noninvasive recording produced by an electrocardiographic device.

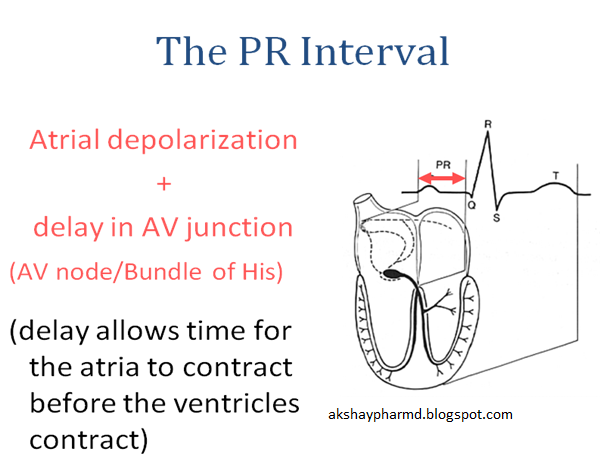

The ECG works by detecting and amplifying the tiny electrical changes on the skin that are caused when the heart muscle "depolarises" during each heart beat. During each heartbeat  heart will have an orderly progression of a wave of depolarisation that is triggered by the cells in the sinoatrial node, spreads out through the atrium, passes through "intrinsic conduction pathways" and then spreads all over the ventricles. This is detected as tiny rises and falls in the voltage between two electrodes placed either side of the heart which is displayed as a wavy line either on a screen or on paper.












Prepared and Presented by
Akshaya Srikanth, Dr. S.Chandra Babu*
Pharm.D Intern, *Asst.Prof of Medicine
RIMS Medical College, Kadapa
India
